AC_AVDD
AC_DMIC_CLK
AC_DMIC_D0
AC_DMIC_D1
AC_DVDD
AC_EAPD
AC_PCBEEP
AC_PORTA_L
AC_PORTA_R
AC_PORTB_L
AC_PORTB_R
AC_PORTB_VREF
AC_PORTC_L
AC_PORTC_R
AC_PORTC_VREF
AC_PORTD_LN
AC_PORTD_LP
AC_PORTD_RN
AC_PORTD_RP
AC_SENSE_A

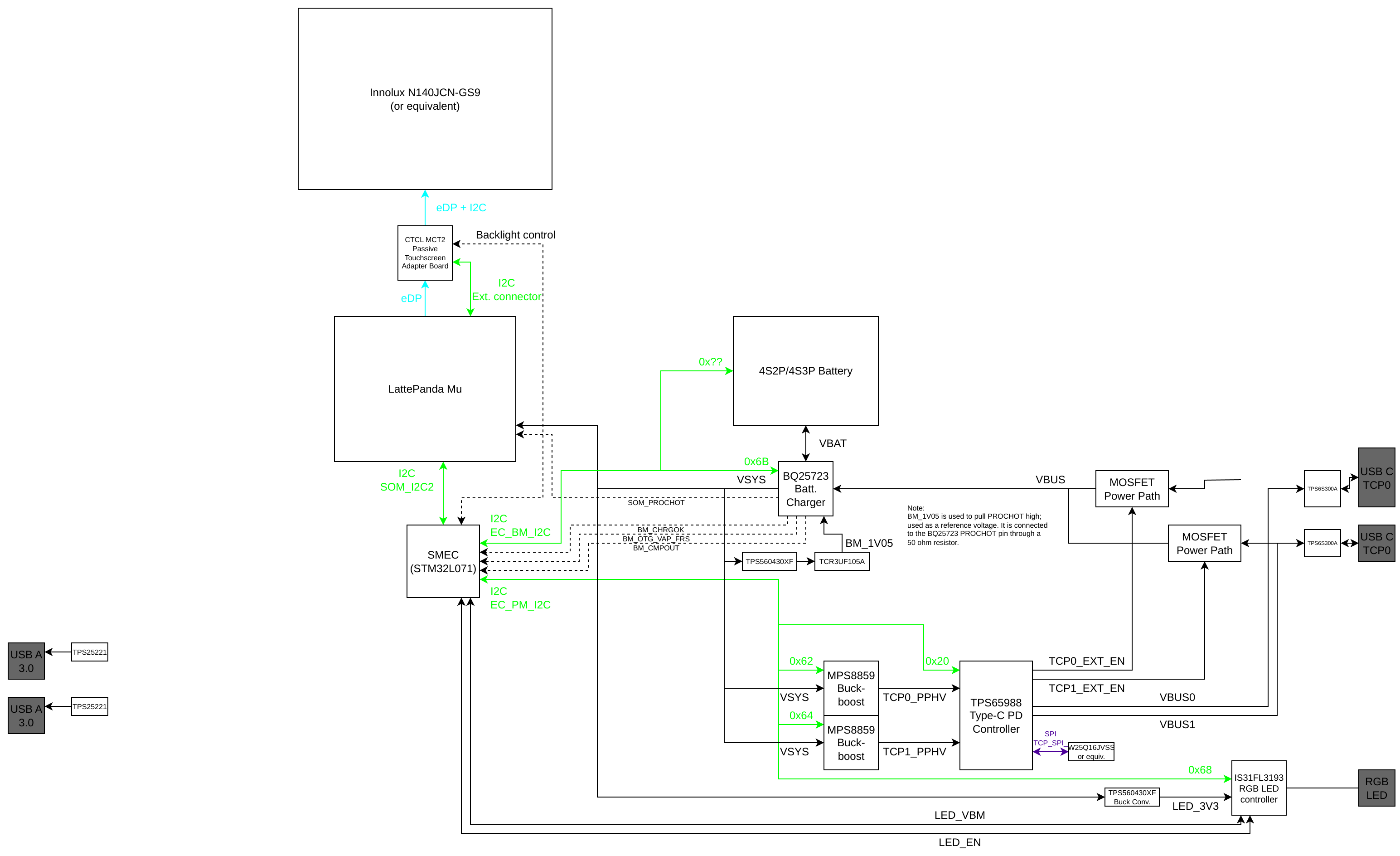

BM_ - Battery Management
BM_1V05
1.05v supply used as a PROCHOT pull-up reference.
It is supplied by a switching regulator-LDO combination.
BM_CHRGOK
Charge status output from the BQ25723
BM_CMPOUT
BM_OTG_VAP_FRS
BM_REGN
BM_VDDA
EC_BM_I2C_SCL
EC_BM_I2C_SDA
EC_IOVDD
EC_PM_I2C_ALT
EC_PM_I2C_SCL
EC_PM_I2C_SDA
HDMI_ - HDMI Output Connector
HDMI_5V
HDMI_5V_CN
HDMI_AUX_N
HDMI_AUX_P
HDMI_CEC
HDMI_CLKN
HDMI_CLKP
HDMI_CLK_N
HDMI_CLK_P
HDMI_CN_CEC
HDMI_CN_HPD
HDMI_CN_SCL
HDMI_CN_SDA
HDMI_CT_HPD
HDMI_D0N
HDMI_D0P
HDMI_D1N
HDMI_D1P
HDMI_D2N
HDMI_D2P
HDMI_HPD
HDMI_LS_OE
HDMI_SCL
HDMI_SDA
HDMI_TX0_N
HDMI_TX0_P
HDMI_TX1_N
HDMI_TX1_P
HDMI_TX2_N
HDMI_TX2_P
HDMI_UTILITY
HDMI_VCCA
LED_ - Charge Port RGB Status LED
LED_3V3
LED_EN
LED_VBM
M2E_ - M.2 Key E Connector
M2E_COEX1
M2E_COEX2
M2E_COEX3
M2E_I2C_ALT
M2E_I2S_CLK
M2E_I2S_SDIN
M2E_I2S_SDOUT
M2E_I2S_WS
M2E_LED1
M2E_LED2
M2E_PCIE_CLKREQ
M2E_PCIE_RST
M2E_PCIE_RX_N
M2E_PCIE_RX_P
M2E_PCIE_TX_N
M2E_PCIE_TX_P
M2E_PCIE_WAKE
M2E_POWER_SNK
M2E_POWER_SRC
M2E_SDIO_CLK
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_CMD
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_DATA0
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_DATA1
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_DATA2
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_DATA3
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_RST
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_SDIO_WAKE
Unused on MediaCow Touch 2 Lite "Curitiba" as the LattePanda Mu does not have an SDIO interface.
M2E_UART_CTS
M2E_UART_RTS
M2E_UART_RX
M2E_UART_TX
M2E_UART_WAKE
M2E_UIM_SWP
M2E_USB_DN
M2E_USB_DP
M2E_VD1
May be Unused on MediaCow Touch 2 Lite "Curitiba"
M2E_VD2
May be Unused on MediaCow Touch 2 Lite "Curitiba"
M2E_VD3
May be Unused on MediaCow Touch 2 Lite "Curitiba"
M2E_WDISABLE1
Wireless disable signal, driven by SMEC
M2E_WDISABLE2
Wireless disable signal, driven by SMEC
SOM_ - System On Module (LattePanda Mu) Connections
SOM_CSI_C_CLK_N/SOM_CSI_C_CLK_P
Unused on MediaCow Touch 2 Lite "Curitiba". CSI Port C Clock differential pair input for the CSI Camera.
SOM_CSI_C_D0_N/SOM_CSI_C_D0_P
Unused on MediaCow Touch 2 Lite "Curitiba". CSI Port C Data differential pair lane 0.
SOM_CSI_C_D1_N/SOM_CSI_C_D1_P
Unused on MediaCow Touch 2 Lite "Curitiba". CSI Port C Data differential pair lane 1.
SOM_CSI_D_CLK_N/SOM_CSI_D_CLK_P
Unused on MediaCow Touch 2 Lite "Curitiba". CSI Port D Clock differential pair input for the CSI Camera.
SOM_CSI_D_D0_N{slash}C_D3_N / SOM_CSI_D_D0_P{slash}C_D3_P
CSI Port D Data differential pair lane 0 or CSI Port C Data differential pair lane 3. Unused on MediaCow Touch 2 Lite "Curitiba".
SOM_CSI_D_D1_N{slash}C_D2_N / SOM_CSI_D_D1_P{slash}C_D2_P
CSI Port D Data differential pair lane 1 or CSI Port C Data differential pair lane 2. Unused on MediaCow Touch 2 Lite "Curitiba".
SOM_FAN1_PWM
Unused on MediaCow Touch 2 Lite "Curitiba" as no fans are used. Super IO Fan 1 PWM output.
SOM_FAN1_TAC
Unused on MediaCow Touch 2 Lite "Curitiba" as no fans are used. Super IO Fan 1 Tachometer input.
SOM_FAN2_PWM
Unused on MediaCow Touch 2 Lite "Curitiba" as no fans are used. Super IO Fan 2 PWM output.
SOM_FAN2_TAC
Unused on MediaCow Touch 2 Lite "Curitiba" as no fans are used. Super IO Fan 2 Tachometer input.
SOM_GSX_CLK
SOM_GSX_DIN
SOM_GSX_DOUT
SOM_GSX_RESET
SOM_GSX_SLOAD
SOM_HDA_BCLK
SOM_HDA_RST
SOM_HDA_SDIN
SOM_HDA_SDOUT
SOM_HDA_SYNC
SOM_HSIO_
The HSIO connections on the Intel N100/N305 are mostly used for providing PCIe lanes with the only two being used for other purposes are HSIO0 and HSIO1.
| Port | Purpose | PCIe Device | PCIe Controller |
|---|---|---|---|
| HSIO 0 | Ext. USB 3 | N/A | Controller #1 |
| HSIO 1 | Ext. USB 3 | N/A | Controller #1 |
| HSIO 2 | Reserved | N/A | Controller #1 |
| HSIO 3 | Reserved | N/A | Controller #1 |
| HSIO 6 | M.2 Key E | 1 | Controller #2 |
| HSIO 8 | M.2 Key M | 2 | Controller #3 |
| HSIO 9 | M.2 Key M | 2 | Controller #3 |
| HSIO 10 | M.2 Key M | 2 | Controller #3 |
| HSIO 11 | M.2 Key M | 2 | Controller #3 |
- The first two HSIO lanes are used as USB 3.2 connected to the two USB Type-C ports.
- The M.2 Key E slot is intended for use with a Wi-Fi/BT module, with USB 2.0 provided alongside a PCIe lane.
- The M.2 Key M slots are intended for use with a M.2 NVMe storage module. This slot could also be used for a M.2 SATA module.
SOM_HSIO0_RX_N
SOM_HSIO0_RX_P
SOM_HSIO0_TX_N
SOM_HSIO0_TX_P
SOM_HSIO1_RX_N
SOM_HSIO1_RX_P
SOM_HSIO1_TX_N
SOM_HSIO1_TX_P
SOM_HSIO2_RX_N
SOM_HSIO2_RX_P
SOM_HSIO2_TX_N
SOM_HSIO2_TX_P
SOM_HSIO3_RX_N
SOM_HSIO3_RX_P
SOM_HSIO3_TX_N
SOM_HSIO3_TX_P
SOM_HSIO6_RX_N
SOM_HSIO6_RX_P
SOM_HSIO6_TX_N
SOM_HSIO6_TX_P
SOM_HSIO8_RX_N
SOM_HSIO8_RX_P
SOM_HSIO8_TX_N
SOM_HSIO8_TX_P
SOM_HSIO9_RX_N
SOM_HSIO9_RX_P
SOM_HSIO9_TX_N
SOM_HSIO9_TX_P
SOM_HSIO10_RX_N
SOM_HSIO10_RX_P
SOM_HSIO10_TX_N
SOM_HSIO10_TX_P
SOM_HSIO11_RX_N
SOM_HSIO11_RX_P
SOM_HSIO11_TX_N
SOM_HSIO11_TX_P
SOM_I2C2_SCL
SOM_I2C2_SDA
SOM_I2C3_SCL
SOM_I2C3_SDA
SOM_I2C4_SCL
SOM_I2C4_SDA
SOM_I2C5_SCL
SOM_I2C5_SDA
SOM_I2S_MCLK
SOM_I2S_RXD
SOM_I2S_SCLK
SOM_I2S_SFRM
SOM_I2S_TXD
SOM_PCIE_CLKREQ3
SOM_PCIE_CLKREQ4
SOM_PCIE_PLTRST
SOM_PCIE_REF0_N
SOM_PCIE_REF0_P
SOM_PCIE_REF1_N
SOM_PCIE_REF1_P
SOM_PCIE_REF2_N
SOM_PCIE_REF2_P
SOM_PCIE_REF3_N
SOM_PCIE_REF3_P
SOM_PCIE_REF4_N
SOM_PCIE_REF4_P
SOM_PCIE_WAKE
SOM_PROCHOT
SOM_PWRBTN
SOM_RSTBTN
SOM_RTC_BAT
SOM_SATAXPCIE0
SOM_SATAXPCIE1
SOM_SBK0
SOM_SBK1
SOM_SBK2
SOM_SBK3
SOM_SIO_SLS_S0
SOM_SIO_SLS_S3
SOM_SIO_UART - System UART output
Supposedly these pins are used for system UART console output.
SOM_SIO_UART_RX
SOM_SIO_UART_TX
SOM_SMB_ALT
SOM_SMB_SCL
SOM_SMB_SDA
SOM_SML_ - Intel SMLink connections
SOM_SML_ALT
SOM_SML_PMCALT
SOM_SML_SCL
SOM_SML_SDA
SOM_SPI_ - SPI connections
This SPI connection is used for both external BIOS flash and TPM.
SOM_SPI_BIOS_SEL
Switch to select on-module BIOS flash or on-board BIOS flash.
May be connected to a PCB jumper or DIP switch to assert high or low.
SOM_SPI_CLK
SPI clock output
SOM_SPI_CS
SPI chip select output for BIOS flash.
SOM_SPI_CS2
SPI chip select output for TPM.
SOM_SPI_IO0_MOSI
SPI data output from SoM or QSPI Data 0.
SOM_SPI_IO1_MISO
SPI data input to SoM or QSPI Data 1.
SOM_SPI_IO2
QSPI Data 2 from or to SoM.
SOM_SPI_IO3
QSPI Data 3 from or to SoM.
SOM_SPI_TPM_IRQ
SPI interrupt from TPM.
SOM_SPI_VCC
Dedicated 3.3v for BIOS flash and TPM.
SOM_SPKR_SATALED
SOM_SUSCLK
SOM_TSENSE
SOM_UART0_RX
SOM_UART0_TX
SOM_UART1_RX
SOM_UART1_TX
SOM_UART2_RX
SOM_UART2_TX
SOM_USB2_
The LattePanda Mu SoM exposes eight USB 2.0 interfaces.
Since USB2 interfaces 1, 2, 5 and 6 are able to be assigned to USB Type-C (TCP) ports, 5 and 6 are used for the USB Type-C ports on both versions of MediaCow Touch 2.
Since USB 3.0 connectors have both USB 2 and USB 3 links, USB 2.0 interfaces 1 and 2 are used for the USB 3.2 Type-A ports on both versions of MediaCow Touch 2.
| Port | Purpose |
|---|---|
| USB2_P1 | Ext. USB 3 |
| USB2_P2 | Ext. USB 3 |
| USB2_P3 | |
| USB2_P4 | |
| USB2_P5 | TCP Port 1 |
| USB2_P6 | TCP Port 2 |
| USB2_P7 | |
| USB2_P8 |
